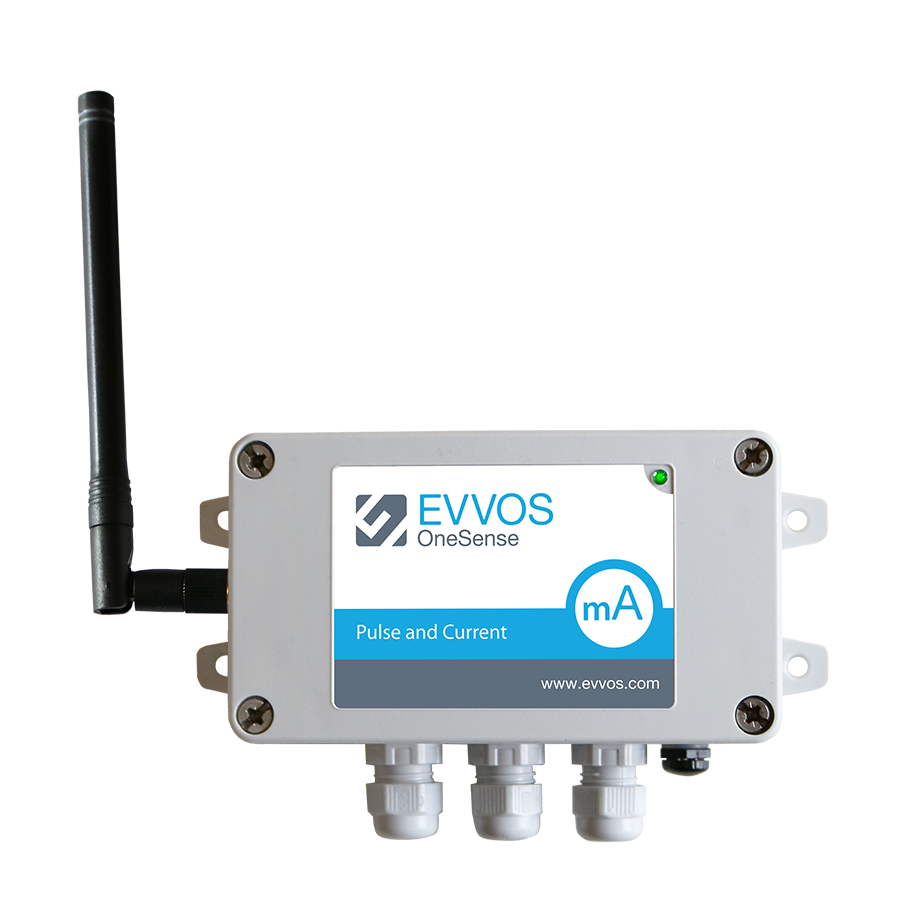

OneSense Pulse and Current Device

OneSense Pulse and Current Device

Telemetry Device

The OneSense Pulse and Current is a compact cost-effective, battery-powered wireless sensor data transmitter/telemetry device. It powers the sensors connected to it, acquires, processes, and transmits the collected data to out middleware Cloud Integration Services (CIS) application for futher processing. OneSense Environment and Agriculture supports several interfaces and sensors, and is capable of acquiring data from multiple sensors, considerably lowering cost per sensing point. Using Evvos API and/or Webhooks (relays), sensor data is easily integrated with your appliction or portal of choice.
  1. IP66 Ingress Protection class
  2. Operating Temperature -20°C to +70°C

Supported Interfaces

  1. 2 x analog channels 4-20mA or 0-20mA or 2-10mA
  2. 1 x Pulse

Firmware

A new firmware, provided by Evvos,can be loaded in seconds to enable support for different message decoders and use cases (combination of sensors, connected to a device).

Typical Applications

  1. Industrial Monitoring
  2. Building Automation
  3. Water and Gas Utilities
