Typical Application - Irrigation
OneSense Agriculture UC3
Description

Soil moisture levels vary from field to field. It is not easy to predict these variances and to take appropriate action to save water and to protect and increase yield.

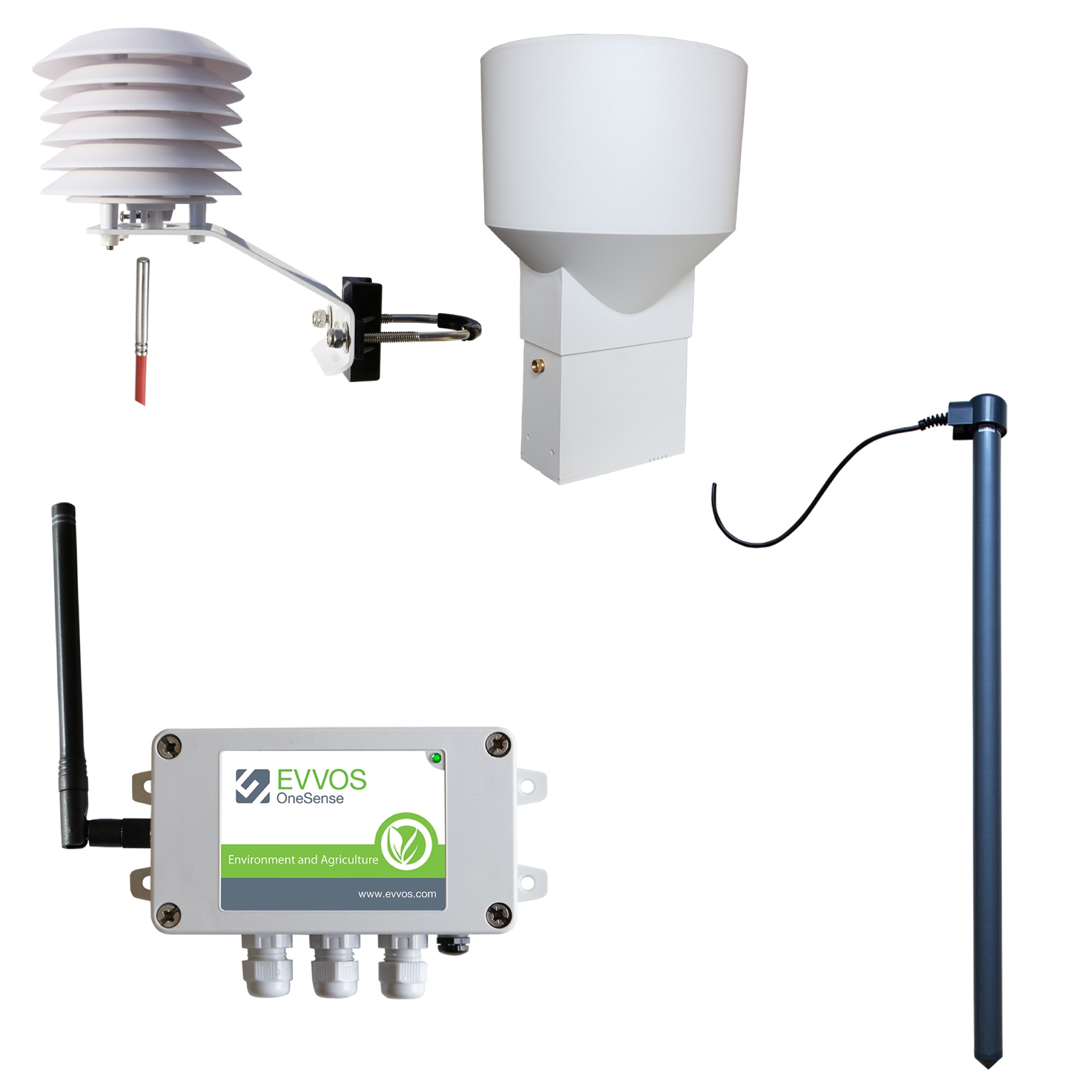

  1. Sensor 1 - 2, 4 or 6 depths capacitance soil moisture and soil temperature probe with an SDI-12 inteface, connected to OneSense Environment and Agriculture telemetry device.
  2. Soil moisture and soil temperature sensors every 10cm
  3. Probe Manufcturer - AquaCheck
  5. Sensor 2 - Professional Rain Gauge - Pronamic
  6. Rain Gauge's Datasheet - download
  7. Sensor 3 - Temperature Sensor with Solar Shield
Options
  1. GPS Add-on board
  2. External power add-on board (7-24Vdc, solar panel, or external battery pack)
  3. GPS and External Power add-on board
Firmware
  1. 2 depth probe -
  2. 4 depths probe -
  3. 6 depths probe -

Sensor Wiring


1. AquaCheck Probe
  1. Power+ --> D
  2. GND --> F
  3. Data --> G
2. Pronamic DK-6950
  1. Termina 3 --> O
  2. Terminal 4 --> P
3. Temperature Sensor - DS18B20
  1. +V --> K
  2. GND --> L
  3. Data --> N
