Message Decoder: Evvos Weather Stations - Use Case 23 (UC23)

Message Decoder: Evvos Weather Stations - Use Case 23 (UC23)

Message Decoder: Evvos Weather Stations - Use Case 23 (UC23)

Typical Application:
  1. Precision Farming
  2. Agricultural Research
  3. Environmental Monitoring
  4. Building Management
  5. Infrastructure Monitoring

Evvos Weather Stations UC23
Description

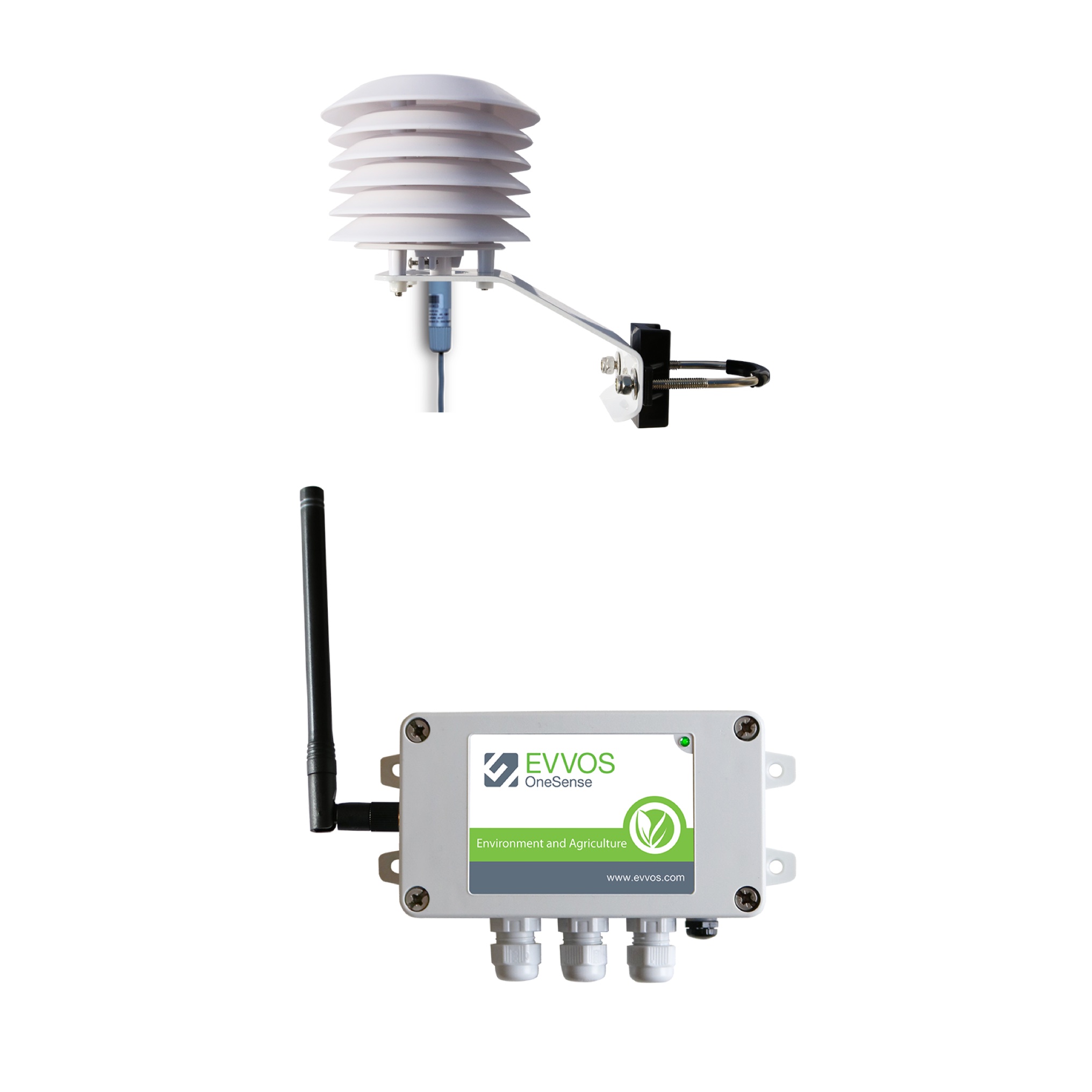

Evvos Weather Station EWS-1 includes:
  1. relative humidity, temperature and barometric pressure sensor with a solar radiation shield
  2. battery-powered wireless data transmitter with an optional solar panel
  3. GPS (optional)

This weather station provides accurate and reliable weather monitoring and a total of 17 weather variables.
  1. Relative Humidity (%)
  2. Ambient Temperature (°C)
  3. Barometric Pressure (hPa)
  4. Heat Index (°C)
  5. Dew Point (°C)
  6. Frost Point (°C)
  7. Water Vapour Pressure (hPa)
  8. Saturated Water Vapour Pressure (hPa)
  9. Speed of Sound in Air (m/s)
  10. Mixing Ratio (g/kg)
  11. Specific Humidity (g/kg)
  12. Absolute Humidity of Air (g/m³)
  13. Boiling Point of Water (°C)
  14. Specific Enthalpy (kJ/kg)
  15. Atmospheric Moisture by Weight (ppm)
  16. Atmospheric Moisture by Volume (ppm)
  17. Wet-bulb temperature (°C)
It is important to measure variations in conditions within a field to prevent farmers from applying the same amount of fertilizer over an entire agricultural field. Weather conditions such as wind, temperature, relative humidity and precipitation have direct impact on the effectiveness of spraying applications and the influence waste potential due to run-off and drift.


Options
  1. GPS Add-on board
  2. External power add-on board (7-24Vdc, solar panel, or external battery pack)
  3. GPS and External Power add-on board
  4. Solar panel



Sensor Wiring



1. Relative Humidity, Temperature, and Barometric Pressure Probe (SKU: SN-ERHTP-10)
  1. +V (brown wire) --> K
  2. GND (white wire) --> F
  3. Data (yellow wire) --> G
2. Pronamic DK-6950
  1. Termina 3 --> O
  2. Terminal 4 --> P
